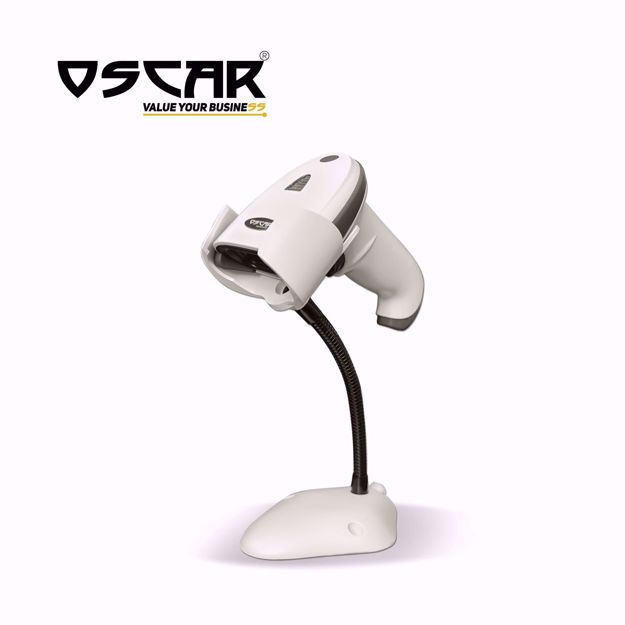

OSCAR UniBar II - Area Imager 2D QR 1D - Wired Barcode Scanner White

Manufacturer: OSCAR
SKU: MBSOSC87800UW

- OSCAR UniBar II - Area Imager 2D QR 1D - Wired Barcode Scanner
- Scans QR Codes and Barcodes from Smart Phone, Tablet, Laptop, LCD, Paper, ...
- Works with almost all Operating Systems such as Windows, MacOS, Android, iOS, Linux, ...
- USB + Virtual COM (Virtual Serial)
- 1 Year warranty




- OSCAR UniBar II 1D QR 2D Barcode Scanner | Windows Connection


- OSCAR UniBar II 1D QR 2D Barcode Scanner | Android Connection

Dimensions : 170mm x 95mm x 70mm

Weight : 162.2g

Current : 300mA (Operating)

Image (Pixels) : 640 pixels (H)x 480 pixels (V)

Light Source : Aiming : 617nm LED; illumination: 6500K LED

Interfaces Supported : USB, Virtual COM

Symbology Decode Capability :

     - 1D : UPC, EAN , Code128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

     - 2D : PDF417, MicroPDF417, Data Matrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, etc.

Humidity : Relative humidity 0% to 25%, non condensing

Shock Specifications : Designed to withstand 1.5m(5') drops

Ambient Light Immunity : 100,000 Lux

Symbol & Density : HD Focus

Decode Ranges :

5MIL : 30mm - 90mm

13MIL : 40mm - 170mm

1D Minimal Resolution : 4mil



Description

Dimensions : 170mm x 95mm x 70mm

Weight : 162.2g

Current : 300mA (Operating)

Image (Pixels) : 640 pixels (H)x 480 pixels (V)

Light Source : Aiming : 617nm LED; illumination: 6500K LED

Interfaces Supported : USB, Virtual COM

Symbology Decode Capability :

     - 1D : UPC, EAN , Code128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

     - 2D : PDF417, MicroPDF417, Data Matrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, etc.

Humidity : Relative humidity 0% to 25%, non condensing

Shock Specifications : Designed to withstand 1.5m(5') drops

Ambient Light Immunity : 100,000 Lux

Symbol & Density : HD Focus

Decode Ranges :

5MIL : 30mm - 90mm

13MIL : 40mm - 170mm

1D Minimal Resolution : 4mil
